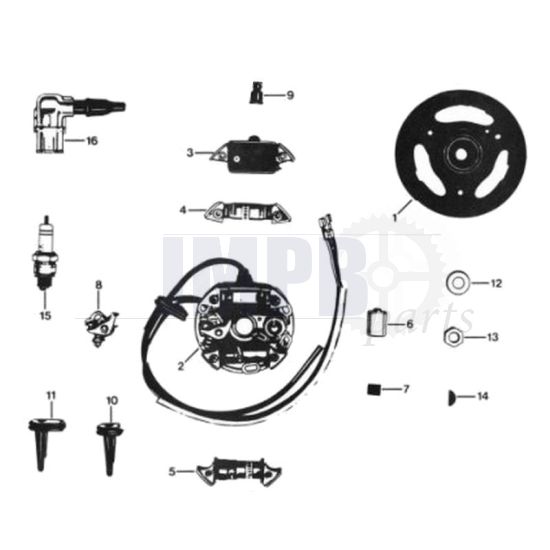

12. Ignition Old Type Zundapp 529

• Flywheel
• For Bosch pointing ignition
• Clockwise
• Fits Puch Maxi


• See images for sizes

• Contact ignition
• Model like Bosch ( Remake )
• Includes extra coil 3 Watt ( Small light )
• 6 Volts 5/15W
• Without flywheel
• Outer diameter Base plate: 90MM
• Inner diameter Base plate: 18MM
• Zundapp / Kreidler / Puch

  Connection

• Black wire = Stopper
• Yellow wire = Headlight and Taillight
• Green wire = Brake light
• Grey or brown wire = Assistance coil - to Taillight up to 3 watts

• Spark coil
• Model Bosch
• Distance mounting holes 54MM
  Fits on;
• Kreidler
• Zundapp
• Puch
• See images for dimensions

• Light coil model Bosch
• Single wire
• 6 Volt / 35 Watt

  Fits on;
• Zundapp
• Kreidler
• Puch


• Note, only works with matching flywheel, we don't have this


• See images for sizes

• Light coil
• Model Bosch
• 6 Volt / 15 Watt
• Single thread

  Fits on:
• Puch
• Zundapp
• Kreidler


• See images for sizes

• Condenser
• Solder
• Original Bosch
  Height: 25MM
  Diameter: 18MM
• Zundapp
• Kreidler
• Puch

Felt / Measurement enough for any model, even for adjust to the right size

• At condenset our base plate
• Puch
• Zundapp
• Kreidler
• Vespa
• Gilera
• Yamaha
• Size ± 20X20MM

Contact set

Ignition grommet.

• Zundapp 3 Gears.

Identical to Zundapp article number
Z265-07 100

Ignition Grommet Double.

• Zundapp 4/5 Gear

Identical to Zundapp article number
276-07.101

M10 Washer
Galvanized
Din 125A

Flywheel nut

• Zundapp
• A piece

• Woodruff / Flywheel key
• Kreidler
• Zundapp
• Puch


• See images for sizes



Identical to Kreidler article number
00.80.01

Identical to Zundapp article number
DIN6888-300

Sparkplug NGK

• Short shank.
• Type NGK B6HS
