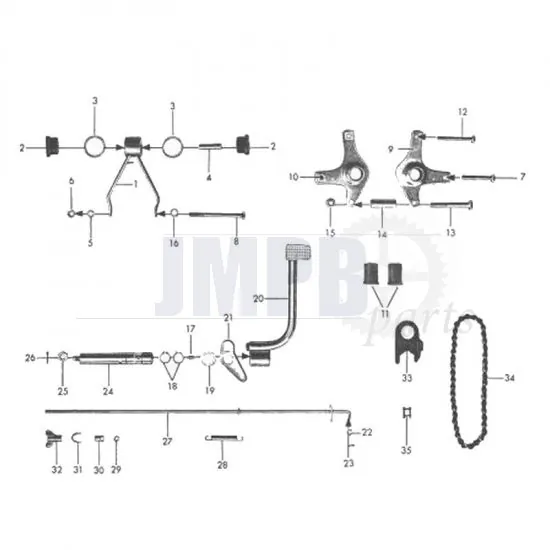

Engine mounting / Brake parts Zundapp 517

• Engine mounting kit
• 4-pieces
• Zundapp 517

  Set contains:
• Upper engine bracket
• Left engine bracket
• Right engine bracket
• Exhaust bracket


• See images for sizes



• Rubber engine mounting
• Zundapp 517/529/530
• Upperside


• See images for sizes

• Washer engine suspension rubber
• 30.2X37X1.5MM
• Per piece

  Fits on:
• Zundapp 517
• Zundapp 529
• Zundapp 530
• Zundapp 537/540 (Front engine mount)

• Spacer
• For engine bracket

  Fits on:
• Zundapp 510/515
• Zundapp 517
• Zundapp 529/530
• Zundapp 540


• See images for sizes



M8 Spring washer Flat
Galvanized
Din 127

• M8 Spring washer
• Stainless Steel
• Din 127B

• Nut M8
• Galvanized
• Din 934

• M8 Nut
• Stainless Steel
• Din 934

Hex bolt M8X55
Verzinkt
Full thread
Din 931

Hexagon bolt M8X55
Stainless Steel
Part thread
Din 931

• Hex bolt
• M8X95
• Galvanized
• Din 931

• Engine support bracket right
• Zundapp 517

• Engine support bracket left
• Zundapp 517

• Engine Mounting rubber
• Zundapp 517
• A piece


• See images for sizes



Hex bolt.
M8X65
Galvanized
Din 931

Hexagon bolt M8X65
Stainless Steel
Part thread
Din 931

• Hex bolt
• M10X70
• Galvanized
• Din 931
• A Piece

• M10 Nut
• Stainless Steel
• Din 934

• Nut M10
• Galvanized
• Din 934

M8 Washer
Galvanized
Din 125A

• M8 Washer
• Stainless Steel
• Din 125A

Circlip.

• Brake pedal shaft Zundapp

A Piece

Shimring Brake pedal shaft .

• Zundapp
• See extra image ( Number 19 )

• Brake pedal
• Zundapp KS50
• 4 Gears


• See images for sizes

• Plate brake pedal / rod
• Zundapp Old type / 517

Plate brake pedal / rod.
From Stainless Steel

• Zundapp Old type / 517

Identical to Zundapp article number
Z517-17.101

• Split pin 3.2X16MM
• For 7MM Brake pedal rod
• Zundapp 517
• See extra image

• Brake pedal axle
• Zundapp

  Comes with;
• Nut
• 2 x Circlips
• Note, without grease nipple



Split pin.

• Brake pedal shaft
• Brake pedal rod ( 5MM Rod)
• Zundapp
• See extra image




• Brake rod
• Zundapp 517
• Total length of the brake rod is 55 CM.
• 5MM

Pull spring Brake rod

• Zundapp.

Identical to Zundapp article number
Z529-17.105 / Z517-17.103

M6 Nut
Stainless Steel.
Din 934

• Nut M6
• Galvanized
• Din 934

Half moon Brake rod.

• Zundapp

Identical to Zundapp article number
Z433-17.100H

• Wing nut
• Brake rod
• Zundapp 517



Chain Guide.

• Zundapp 517
• 28MM (hole diameter)

Identical to Zundapp article number
Z517-18 111

• Chain
• Regina Professional
• 1/2 "x 3/16" (415)
• 122 Links
• Comes with matching chain link
• Note, comes without sprocket

• Chain link
• For Regina Gold Chain
• 1/2"x 3/16" ( 415 )
