19. Zundapp 529 Front Fork Disc Brake

Grouped product items
Product Name Qty
1 - Outer Leg Left Zundapp 529/530 Complete
Outer Leg Left Zundapp 529/530 Complete
  • Outer leg front fork
  • Left
  • Chrome
  • With brake caliper bracket
  • Complete with bushings and seal

    Fits on:
  • Zundapp 529
  • Zundapp 530
€69.99
Out of stock
2 - Outer Leg Right Zundapp 529/530 Complete
Outer Leg Right Zundapp 529/530 Complete
  • Outer leg front fork
  • Right
  • Chrome
  • Complete with bushings and seal

    Fits on:
  • Zundapp 529
  • Zundapp 530
€69.99
Out of stock
2 - Outer Legs Complete Zundapp 530
Outer Legs Complete Zundapp 530
  • Set fork legs ( outer legs )
  • Chrome
  • Remake
  • Left & Right
  • With brake caliper mounting
  • Complete with bushings and seals

    Note:
  • Chrome is not A-quality, especially around the mounting points there are imperfections (see pictures)

    Fits on:
  • Zundapp 530
€119.95
2 - Outer legs Zundapp 530
Outer legs Zundapp 530
  • Set fork legs ( outer legs )
  • Left & Right
  • Comes bare ( Without buses, seals )
  • Zundapp 530
€129.95
3 - Guide bushing set Front fork Zundapp 517
Guide bushing set Front fork Zundapp 517
  • Set guide bushings
  • Noter, per side
  • Front fork
  • Zundapp 517

€11.50
4 - Cover Ring Front Fork Zundapp
Cover Ring Front Fork Zundapp
  • Cover ring for seals / guide bushings
  • A piece
  • Zundapp
€1.75
Out of stock
5 - Fork seal Zundapp 30/40/7
Fork seal Zundapp 30/40/7

Fork seal various models Zundapp.

  • GTS50
  • KS50
  • CS50

Size: 30X40X7

€2.49
7 - Fork Covers Zundapp
Fork Covers Zundapp
  • Set Fork covers

    Suitable for:
  • Zundapp

  • Base diameter 45MM
  • Top diameter 35MM
  • Total length 210MM
€9.95
8 - Hose clamp SS 25-40MM Norma
Hose clamp SS 25-40MM Norma

Hose clamp Universal.

  • Reach 25-40MM
  • Width 9MM
  • Stainless Steel
  • Norma SGT/W2
€1.80
9 - Hose clamp SS 32-50MM Norma
Hose clamp SS 32-50MM Norma

Hose clamp Universal.

  • Reach 32-50MM
  • Width 9MM
  • Stainless Steel
  • Norma SGT/W2
€1.90
10 - Circlip Outer Leg Zundapp 530 A Piece
Circlip Outer Leg Zundapp 530 A Piece
  • Circlip Outer leg
  • Zundapp 530
  • A Piece
  • See extra image number 10
€0.35
12 - Stanchion Zundapp KS50/KS80 - 529
Stanchion Zundapp KS50/KS80 - 529
  • Fork stanchion
  • A Piece
  • Zundapp KS50 / KS80 / 529 / 530

  • See images for sizes
€29.95
13 - Bolt Front Fork Underside Outer Leg Zundapp 529/530
Bolt Front Fork Underside Outer Leg Zundapp 529/530
  • Bolt underside outer leg
  • For forks with disc brakes
  • A piece

    Fits a.o:
  • Zundapp 529
  • Zundapp 530
€0.95
14 - O-Ring Front Fork Outer Leg Zundapp 529/530
O-Ring Front Fork Outer Leg Zundapp 529/530
  • O-ring underside outer leg
  • For forks with disc brakes
  • A piece

    Fits a.o:
  • Zundapp 529
  • Zundapp 530
€0.50
16 - Bushing Front Fork Spring Zundapp 529/530
Bushing Front Fork Spring Zundapp 529/530
  • Bushing front fork spring
  • For forks with disc brake
  • A piece

    Fits on:
  • Zundapp 529
  • Zundapp 530
€2.95
17 - Front fork Spring Zundapp 529
Front fork Spring Zundapp 529
  • Front fork Spring
  • Zundapp 529
  • Inner diameter 16MM
  • Outer Diameter 22MM
  • Total length 360MM

€8.50
Out of stock
18 - Upper Spring Holder Zundapp 529/530
Upper Spring Holder Zundapp 529/530
  • Upper Spring Holder Zundapp 529/530
  • Aluminum
  • For disc brake front fork
  • A piece

    Fits on:
  • Zundapp 529
  • Zundapp 530
€14.95
19 - Washer Front Fork SS Zundapp
Washer Front Fork SS Zundapp

Washer Front Fork.
Stainless Steel.

  • Zundapp
  • See extra image number 11

Identical to Zundapp article number
Z517-12.162



€2.99
20 - Bolt + Ring Chrome Front Fork Zundapp 529
Bolt + Ring Chrome Front Fork Zundapp 529
  • Bolt & Ring Chromed ( M8X1 )
  • For the front fork plate
  • Zundapp 529
  • A piece
€6.95
21 - Fork Plate Zundapp 529 / 530 Black
Fork Plate Zundapp 529 / 530 Black
  • Fork plate
  • Black
  • Zundapp 529 / 530

  • See images for sizes

€57.50
22 - Hex bolt M8X60 Galvanized Din 931
Hex bolt M8X60 Galvanized Din 931
  • Hex bolt
  • M8X60
  • Galvanized
  • Part Thread
  • Din 931
€0.49
23 - M8 Nut Galvanized Din 934
M8 Nut Galvanized Din 934
  • Nut M8
  • Galvanized
  • Din 934
€0.07
24 - Spacer Front Fork Zundapp 517
Spacer Front Fork Zundapp 517
  • Nylon Spacer Front fork rubber
  • Zundapp 517
€2.90
24 - Spacer Front fork Zundapp 517 as Original
Spacer Front fork Zundapp 517 as Original
  • Nylon Spacer Front fork rubber
  • Zundapp 517

  • See images for sizes
€4.50
25 - Upper Triple Clamp Zundapp 529/530
Upper Triple Clamp Zundapp 529/530
  • Upper triple tree / clamp
  • Chrome
  • Without fixing nuts

    Fits on:
  • Zundapp 529
  • Zundapp 530

€37.50
26 - Steering Head Cap Nut Zundapp Allen
Steering Head Cap Nut Zundapp Allen
  • Steering head cap nut
  • Zundapp 529/530
  • Allen
  • Chromed
€8.50
27 - Cap Steering head nut Zundapp Plastics
Cap Steering head nut Zundapp Plastics
  • Cap Allen Steering head nut
  • From plastics
  • Zundapp 529 / 530
  • Without nut!
€1.95
28 - Rubber Spacer Front fork Zundapp
Rubber Spacer Front fork Zundapp
  • Rubber Spacer Front fork
  • Zundapp
€2.99
In stock, immediately available.
In stock
SKU
--EXP-529-019

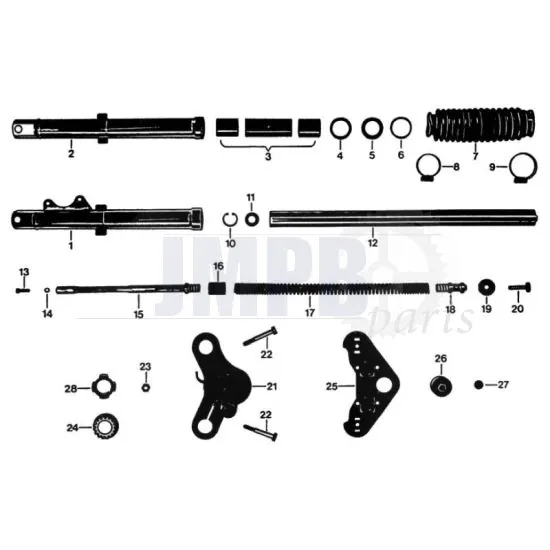

  • Exploded view
  • Voorvork Schijfrem
  • Zundapp 529
  • Exploded view
  • Voorvork Schijfrem
  • Zundapp 529
