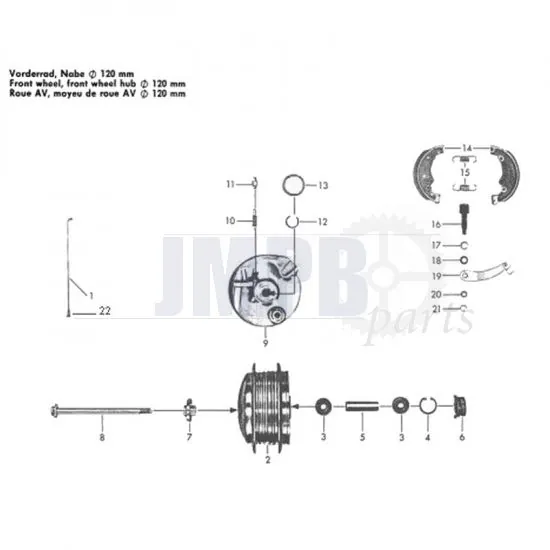

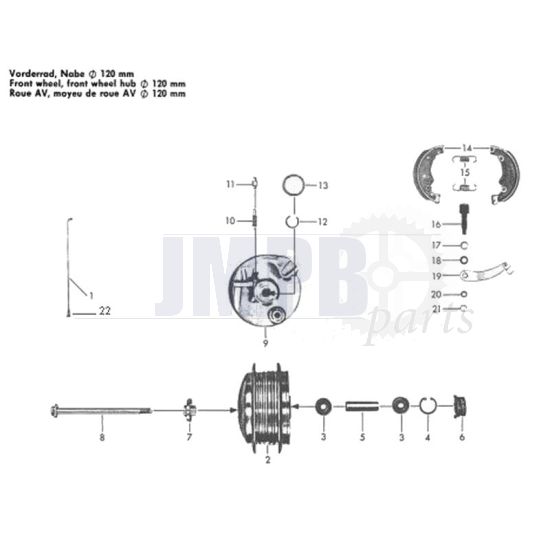

Front Wheel hub Zundapp 517

Be the first to review this product Be the first to review this product

Grouped product items
Product Name	Qty
1 - Spoke Zundapp a piece 181MM Spoke A piece Chrome 181MM for small hub Zundapp €0.95
3 - Bearing 6201 2RS Bearing SKF 6201 2RS Inner diameter 12MM Outer diameter 32MM Width 10MM Is used for: Kreidler front wheel Left + Right Kreidler rear wheel Left + Right Zundapp 3 Gears. Front + Rear wheels (spoked) Zundapp Sprinter Front + Rear wheels (12 spoke cast wheels) Enfield Explorer Kreidler Flory MF23 Wheel bearing Tomos A35 €4.50
4 - Circlip Small Hub Zundapp Circlip Zundapp 517 Front & Rear Hub ( 120MM - Small model ) See extra images €0.35
5 - Rebuild Kit 120MM Hub Zundapp Rebuild kit Ø 120MM hub 4 Pieces Set contains: 2x 6201 2RS bearings 1x Spacer 1x Circlip Fits on: Zundapp 510 (Model 1962) Zundapp 515 Zundapp 517 Zundapp 529 €11.95
6 - Kilometer wormset 3-Parts Zundapp Kilometer wormset 3 Parts Zundapp Zundapp identical to article numbers Z517-15.151 (Wormwheel) Z515-15.106 (Worm shaft) Z515-15.100 (Threaded bush) €13.95
7 - Spacer Zundapp Front Wheel OT 517 Spacer Zundapp front wheel Old Type / 517 €6.50
8 - Front wheel axle Zundapp Key width 14MM Front wheel axle Zundapp 12MM Key width 14MM Length 195MM €4.99
9 - Brake anchor plate Zundapp 517 / 529 Frontside 120MM Brake anchor plate Zundapp 517 / 529 Frontside For 120MM small hub Note, can contain damages €31.95
11 - Threaded Bushing Speedometer Zundapp Threaded bushing speedometer Zundapp Inner diameter Ø 5.7MM €3.50
14 - Brake Shoes Zundapp Small Brake shoes Zundapp For small hub (120MM) Both front and rear €8.50
17 - Washer Brake key Zundapp Washer Brake key. Zundapp Identical to Zundapp article number Z267-05.597 €0.89
18 - O-Ring Zundapp Brake key O-Ring. Zundapp Brake key See extra image €0.65
19 - Brake lever Zundapp 517 Long - Front Brake lever Frontside For 150MM Hub Zundapp 517 €7.95
20 - M8 Spring washer SS Din 127B M8 Spring washer Stainless Steel Din 127B €0.09
20 - M8 Spring washer Flat Galvanized Din 127 M8 Spring washer Flat Galvanized Din 127 €0.06

21 - Nut Low Brake Key Zundapp Nut Brake key Zundapp all models M8 - Low nut A Piece See extra image €0.20
22 - Spoke Nipple Zundapp/Kreidler A piece Spoke nipple Zundapp / Kreidler A piece See images for sizes €0.20

22 - Spokes set Zundapp Small hub 181MM Spokes set For model with small hub (17 Inch - 120MM) 36 Pieces inner & outer spokes Length of the spoke is 181MM Chromed spokes including nipples Zundapp See images for sizes €32.95
