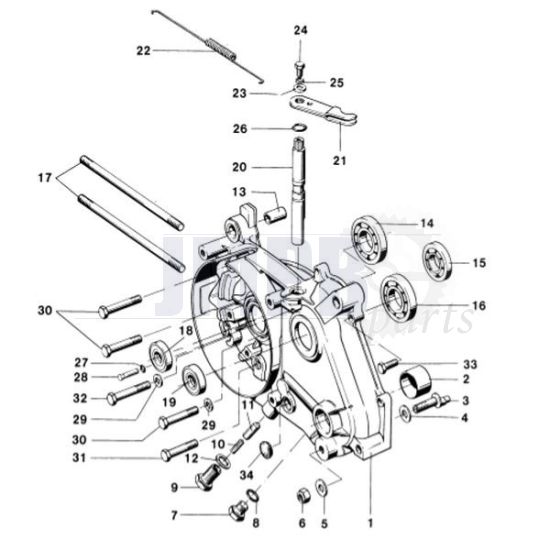

Exploded view left carter Kreidler 5G Direct geared

Grouped product items
Product Name	Qty
3 - Eccentric Bolt Kreidler 4/5G Direct Eccentric bolt Kreidler 4/5V Direct gearing €16.50
4 - Sealing ring for Eccentric Bolt Kreidler Sealing ring Eccentric Bolt Kreidler 8,5 X 16 X 0,5MM €0.99
5 - M8 Body disc Galvanized Din 9021 M8 Body disc Galvanized 30 X 1.5 Din 9021 €0.15
5 - Ring 8MM Chrome Kreidler Fork plate / Eccentric bolt Ring chromed 8MM For mounting the upper plate Mounting eccentric bolt Kreidler €1.75
6 - M8 Locknut Galvanized Din 985 M8 Locknut Galvanized Din 985 €0.15
7 - Bolt Engine Low Kreidler 4/5 Gear SW13 Enginebolt Kreidler 4/5 Gear 12x1.5 SW13 A piece Color depending on stock, not possible to choose €2.15
7 - Bolt Engine Low Kreidler 4/5 Gear SW17 Enginebolt Kreidler 4/5 Gear 12x1.5 SW17 €5.25
8 - Sealing Oil Filler Cap / Drain Plug Kreidler Sealing For Oil filler cap / Drain plug Kreidler A Piece 12X16X2MM €0.70
9 - Blocking plug bottom Engine block Kreidler Blocking plug bottom side engine block Kreidler €10.95	Out of stock
10 - Pressure spring Foot gear Kreidler 3/4/5 G. Pressure spring foot gears Kreidler 3, 4 & 5 gears €1.50
11 - Sleeve for Blocking plug Kreidler Sleeve for Blocking plug Kreidler direct transmission €7.90
12 - Sealing Blocking plug Kreidler Sealing For blocking plug bottom engine Kreidler 4/5 Direct gear 14X18X2MM A Piece €0.70
13 - Bushing Crankcase half Kreidler Bushing Crankcase / Carter half Kreidler €3.55
14 - Bearing BO17 NSK Brass a piece Crankshaft bearing BO17 NSK / Brass cage Inner diameter 17MM Outer diameter 44MM Width 11MM A Piece Kreidler €19.50

15 - Bearing 6201 C3 SKF Bearing 6201 C3 SKF Inner diameter 12MM Outer diameter 32MM Width 10MM Is a.o. use for; Kreidler Layshaft left Tomos main axle €5.99
16 - Bearing 6302 C3 SKF Bearing SKF 6302 C3 Inner diameter 15MM Outer diameter 42MM Width 13MM Is used for example; Kreidler Main Axle Left Zundapp 4/5 Gears. Crankshaft Right €7.50
17 - Cylinder studs Kreidler Cylinder studs Kreidler M8 X 120 4 Pieces €5.95
18 - Crankshaft seal Kreidler VITON Crankshaft seal Kreidler VITON 17X28X7 A piece High temperature resistance / Long life Only useful with tuned engines! €6.95
18 - Seal Zundapp/Kreidler 17X28X6.5 A-Quality Seal 17x28x6.5 ( A-Quality ) Double Sealed Crankshaft Kreidler Left & Right Crankshaft Zundapp Left €5.95
18 - Crankshaft seal Kreidler Standard Crankshaft seal Kreidler Standard model 17X28X7 €1.95
19 - Seal Zundapp 15x24x7 Double sealed Seal Size: 15X24X7 Double sealed Fits on: Zundapp crankshaft right Kreidler main axle €2.95
20 - Clutch axle Kreidler 31 Teeth Clutch axle 31 teeth Kreidler Mounted from 14-6-1971 €19.95
21 - Clutch lever Kreidler 31 Teeth Clutch lever Kreidler ( newer models ) 31 Teeth €25.95	Out of stock
22 - Clutch spring Kreidler Clutch spring Kreidler €2.75
23 - Ring for Clutch lever Kreidler Ring for clutch lever A Piece Kreidler €0.85
24 - Hex bolt M6X12 Galvanized Din 933 Hexagon bolt M6X12 Galvanized Full thread Din 933 €0.07
25 - M6 Spring washer Flat Galvanized Din 127 M6 Spring washer Flat Galvanized Din 127 €0.02
26 - O-Ring Kreidler 10.1 X 1.6 Clutch shaft O-Ring 10.1 X 1.6 For clutch shaft Kreidler €0.49
27 - Sealing Ring for Clutch Axle Kreidler Sealing ring For Clutch axle Kreidler €0.99
28 - Notch Nail for Clutch axle Kreidler Notch Nail for Clutch axle Kreidler 3, 4 & 5 Gears €1.99
29 - Sealing Enginehousing Left Kreidler Sealing For enginehousing left behind ignition plate Kreidler 6X10X1.5 A Piece €0.60
30 - Hex bolt M6X80 Galvanized Din 931 Hex bolt M6 X 80 Galvanized Part thread Din 931 €0.40
31 - Hex bolt M6X70 Galvanized Din 931 Hex bolt M6 X 70 Galvanized Part thread Din 931 €0.40
32 - Hex bolt M6X85 Galvanized Din 931 Hex bolt M6 X 85 Galvanized Part thread Din 931 A piece €0.70
33 - Hex bolt M6X30 Galvanized Din 931 Hex bolt. M6X30 Galvanized Din 931 €0.20
34 - Freezer plate Crankcase Left Kreidler Freezer plate Crankcase / Carter Left Kreidler €1.75
