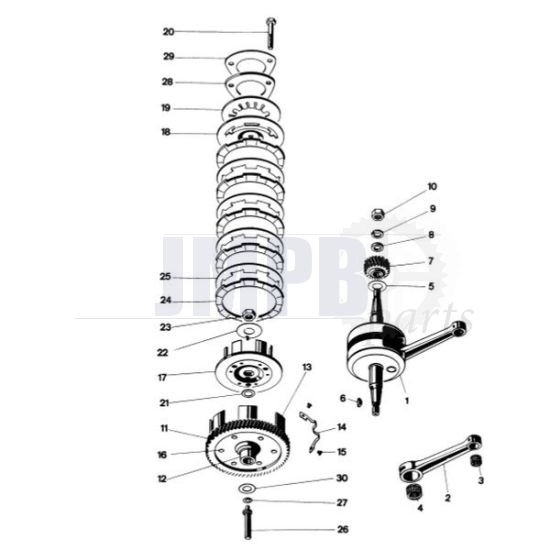

Clutch / Crankshaft Kreidler 5G Indirect

Be the first to review this product Be the first to review this product

Grouped product items
Product Name	Qty
1 - Crankshaft Kreidler Race Crankshaft Kreidler 3/4/5 Gears Model Race Hub 39.7MM For 14MM Piston pin €99.95
1 - Crankshaft Kreidler Top Racing Crankshaft Top Racing Includes Needle bearing For 14MM Piston pin Fitting for: Kreidler RM / RMC €95.00
1 - Crankshaft Kreidler CM Crankshaft CM - Crankshaft A'ssy Kreidler 3, 4 & 5 Gears Including needle bearings For 14MM Piston pin €89.95
1 - Crankshaft Kreidler Rito Crankshaft Rito A-Quality Fullround Race Balanced Including needle bearing For 14MM Piston pin Kreidler 3/4/5 gears €175.00
2 - Connecting rod set Kreidler Top Racing Connecting rod set Brand Top Racing Includes Big end Bearing and Small end Bearing Kreidler 3, 4 & 5 Gears For 14MM piston pen See images for dimensions €39.95
2 - Connecting rod set Kreidler Rito Connecting rod Rito Includes Big end Bearing and Small end Bearing Kreidler 3, 4 & 5 Gears For 14MM piston pen See images for dimensions €64.95
3 - Needle bearing Kreidler 3/4/5 Gear Needle bearing Kreidler 3,4 & 5 Gear 14 X 18 X 15.6 €7.50	Out of stock
3 - Needle Bearing Kreidler Barikit 14X18X14 Needle bearing ( Small-end bearing ) Barikit A-quality 14X18X14 Kreidler 3,4 & 5 gears €9.50
3 - Needle Bearing Kreidler Barikit 14X18X15 Needle bearing ( Small-end bearing ) Barikit A-quality 14X18X15 Kreidler 3,4 & 5 gears €9.50	Out of stock
4 - Big-End Bearing Kreidler Big-end Bearing Kreidler €21.95
5 - Shimring Crankshaft Kreidler 1.5 MM Shimring Kreidler Crankshaft . Size; 1.50 MM €0.89
5 - Shimring Crankshaft Kreidler 0.20 MM Shimring Kreidler Crankshaft Size; 0.20 MM €0.89
5 - Shimring Crankshaft Kreidler 1.0 MM Shimring Kreidler Crankshaft Size; 1.0 MM €0.89
5 - Shimring Crankshaft Kreidler 0.30 MM Shimring Kreidler Crankshaft . Size; 0.30 MM €0.89
5 - Shimring Crankshaft Kreidler 0.10 MM Shimring Crankshaft Kreidler Size; 0.10 MM €0.89
6 - Woodruff / Flywheel key Zundapp/Kreidler/Maxi Woodruff / Flywheel key Kreidler Zundapp Puch See images for sizes Identical to Kreidler article number 00.80.01 Identical to Zundapp article number DIN6888-300 €0.50
7 - Crankshaft sprocket Kreidler 20 Teeth Crankshaft sprocket 20 Teeth Kreidler €75.00	Out of stock
8 - Spacer ring Kreidler Crankshaft Spacer ring Crankshaft Kreidler €3.75
9 - Spring washer Crankshaft / Flywheel nut Kreidler Spring washer For Crankshaft nut & Flywheel nut Kreidler M10 €0.40
10 - Flywheel / Crankshaft Nut Kreidler Flywheel / Crankshaft nut Kreidler M10 X 1 Left threaded A piece €0.70
11 - Primary Gear Kreidler - For Clutch Primary Gear 79 Teeth With crankshaft sprocket 20 Teeth With brass bushing Kreidler €375.95
12 - Bearing bushing Clutch housing Kreidler 4/5G Bronze Bearing bushing Clutch housing With double lubricating slide Please note, this bush has a tolerance, and will need to be reworked on your axle & house. Kreidler 4 & 5 gears €19.95
15 - Recessed Rivet 2.6X6 Kreidler Clutch spring Recessed Rivet 2.6X6MM For mounting of the spring to the clutch housing Kreidler €0.50
16 - Recessed Rivet 4X8 Kreidler Clutch house Recessed Rivet 4X8mm Clutch house Kreidler €0.25
18 - Clutch Cover Plate Kreidler 5V Clutch cover plate Jasil / Top Racing For a 5 plate clutch Kreidler 5 gears €28.95	Out of stock
20 - Hex bolt M6X30 Galvanized Din 931 Hex bolt. M6X30 Galvanized Din 931 €0.20
21 - Spacer ring Clutch Star Teethed Kreidler Spacer ring Clutch / Star geared teeth Kreidler €6.90
22 - Securing plate Clutch Basket Kreidler Securing plate Clutch Basket Kreidler €0.99
23 - Nut Clutch Kreidler Nut Clutch Kreidler M12X1 €1.09
24 - Clutch Plate Kreidler A piece Aluminum Clutch plate Kreidler Aluminum Inner centre A Piece Kreidler 3, 4 & 5 gears Note, sometimes needs some additional filing for correct fit €6.95

24 - Clutch plate Kreidler Clutch plate set 5-Parts Kreidler 3,4 & 5 Gears €2.50
25 - Intermediate Clutch Plate Kreidler with Holes Intermediate clutch plate Model with holes for better grip Kreidler €7.95
25 - Intermediat Clutch Plate Kreidler with Slots Intermediat Clutch Plate Model with slots Kreidler €7.99
25 - Intermediate Clutch Plate Kreidler Standard Intermediate Clutch Plate Standard model Kreidler €5.99
26 - Pressure pin Short Clutch Kreidler Pressure pin Short Clutch Kreidler €11.95
27 - Filler ring for Clutch pin Kreidler 1.0MM Filler ring for Clutch pin Kreidler 1.0MM €0.89
27 - Filler ring for Clutch pin Kreidler 0.30MM Filler ring for Clutch pin Kreidler 0.30MM €0.89
27 - Filler ring for Clutch pin Kreidler 0.10MM Filler ring for Clutch pin Kreidler 0.10MM €0.89
27 - Filler ring for Clutch pin Kreidler 0.20MM Filler ring for Clutch pin Kreidler 0.20MM €0.89
27 - Filler ring for Clutch pin Kreidler 0.50MM Filler ring for Clutch pin Kreidler 0.50MM €0.89
27 - Filler ring for Clutch pin Kreidler 1.5MM Filler ring for Clutch pin Kreidler 1.5MM €1.95
28 - Clutch thrustplate Kreidler Clutch thrustplate Kreidler €5.50
29 - Clutch securing plate Kreidler Clutch Securing plate Kreidler 3, 4 and 5 gears €2.75

30 - Shimring 0.20MM Behind Clutchhousing Kreidler Shimring Behind clutch housing 20X28X0.20MM Kreidler €0.89
30 - Shimring 0.50MM Behind Clutchhousing Kreidler Shimring Behind clutch housing 20X28X0.50MM Kreidler €0.89
30 - Shimring 0.30MM Behind Clutchhousing Kreidler Shimring Behind clutch housing 20X28X0.30MM Kreidler €0.89
30 - Shimring 0.10MM Behind Clutchhousing Kreidler Shimring Behind clutch housing 20X28X0.10MM Kreidler €0.89
