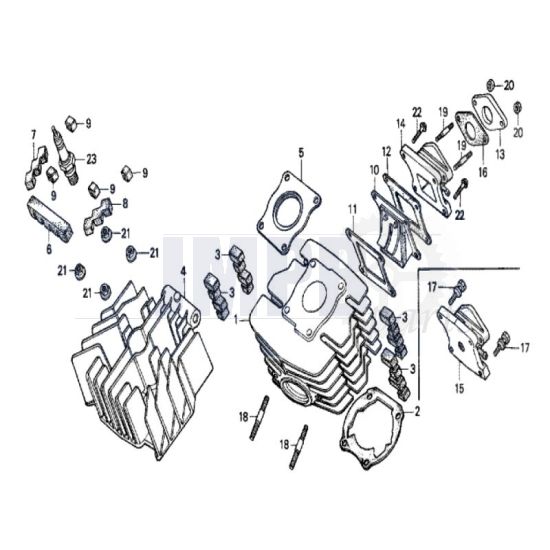

Exploded view Cylinder / Manifold Honda MT50

Grouped product items
Product Name	Qty
1 - 50CC Cylinder Cast Iron Honda MB/MT Cylinder 50CC Bore 39MM Content 50CC Material Cast iron Comes with Piston Piston pin 12MM Gaskets included? Yes Fits on; Honda MT Honda MB Honda MTX Old Model €59.00
1 - 50CC Cylinder Athena Honda MB/MT Athena Cylinder 50CC Bore 39MM Content 50CC Material Aluminum Comes with Piston Piston pin 12MM Gaskets included? Yes Fits on; Honda MT Honda MB Honda MTX Old Model Special Price €259.00 Regular Price €289.00
1 - 50CC Cylinder DMP Honda MB/MT/MTX Cylinder 50CC Bore 39MM Cylinder volume 50CC Aluminium / Nicaseal coated Comes with Piston Piston pin 12MM Gaskets included? No Fits on: Honda MT Honda MB Honda MTX Old Model €79.00
2 - Base Gasket Honda MB/MT 50CC Base gasket 50CC Honda MB Honda MT €0.99
3 - Vibration damper Rubber set Cylinder head Honda MB/MT Vibration damper Rubber set Cylinder head Honda MB/MT €7.50
4 - 50CC Cylinder head Honda MB/MT Cylinder head 50CC / 39MM Honda MB Honda MT Honda MTX old model €39.95
5 - Head Gasket Honda MB/MT 50CC Head gasket 50CC Honda MB Honda MT €1.25
5 - Head Gasket Honda MB/MT 70CC Head gasket 70CC / 45MM Fits on: Honda MB Honda MT Honda MTX OT €2.25
8 - Vibration damper Left Cylinder Honda MT/MB Vibration damper cylinderhead Left Honda MT Honda MB €4.90	Out of stock
10 - Membrane 2-Valve Honda MB/MT Membrane 2-Valve - Steel plate Honda MB Honda MT See images for sizes €8.95
11 - Membrane gasket Honda MB/MT/NSR Big hole Membrane / Manifold gasket Model with big hole Honda MT Honda MB Honda NSR Honda MBX Honda MTX €0.85
12 - Membrane gasket Honda MB/MT/NSR Small hole Membrane / Manifold gasket Model with small hole Honda MT Honda MB Honda NSR Honda MBX Honda MTX €1.15
13 - Manifold isolation plate 12/18MM Keihin Honda MB/MT/NSR/MTX-SH Manifold isolation plate For 12 > 18MM Keihin carburettors Honda MB Honda MT Honda NSR Honda MBX Honda MTX-SH €2.25
15 - Manifold 16MM Mikuni Honda MB/MT Manifold Model Mikuni Pass 17MM For 16MM Mikuni carburettors Centre distance studs 44MM Including connection for Oil pump Honda MB Honda MT Honda MTX old model €6.95
15 - Manifold 20/24MM Mikuni Honda MB/MT Manifold model Mikuni Pass 24MM For 20 & 24MM 2-bolts carburettors With connection for Oil pump Centre distance studs 50MM ( M8 bolt holes ) Honda MB Honda MT Honda MTX old model €6.95
15 - Manifold 16/18MM Keihin Honda MB/MT Manifold For 16 & 18MM Keihin carburettors Pass 18MM Centre distance studs 49MM ( M6 studs ) With connection for Oil pump Honda MB Honda MT Honda MTX old model €8.95
15 - Manifold 20MM Mikuni Honda MB/MT Manifold 20MM For Mikuni slide-on carburettor Connection carburettor 26MM With connection for the oil pump Honda MB Honda MT €9.50
18 - Intake stud Honda MT/MB/NSR/MTX Stud M6 X 35MM Usable for intake manifiold Honda MT Honda MB Honda NSR Honda MTX Honda MBX €0.50
20 - M6 Flange nut Galvanized Din 6923 Flange nut M6 Galvanized Din 6923 €0.20
21 - Cylinder head nut a piece Honda Cylinder head nut A Piece M8 Honda MT Honda MB Honda MTX Honda MTX-SH Honda NSR Honda MBX €0.35
22 - Engine Flange Bolt A Piece M6X20 Model Honda Engine flange bolt Model like Honda Size ; M6X20 For keysize 8MM A Piece €0.45
23 - Sparkplug NGK B7HS Sparkplug NGK Short shank Type NGK B7HS €2.95
