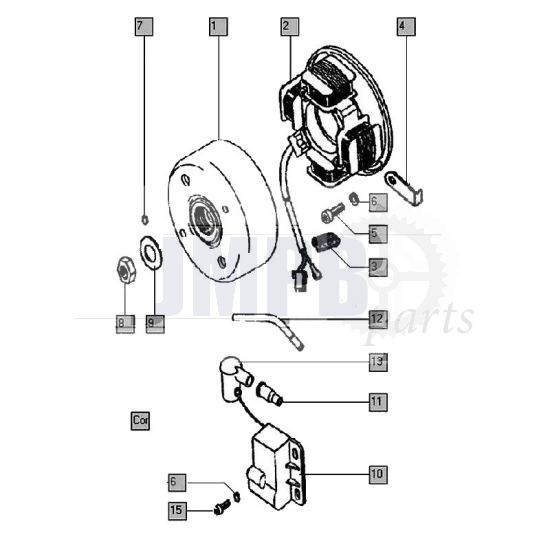

Technical drawing ignition without pickup Tomos

Grouped product items
Product Name	Qty
4 - Bracket for ignition wires Tomos Bracket for ignition wires Tomos Classic Tomos Quadro Tomos Youngst'R Tomos Standard Tomos Luxe Tomos Revival Tomos Flexer Tomos Pack'R Tomos Funtastic Tomos Flexer €3.50
5 - Allen bolt M5X16 SS Din 912 Allen bolt M5X16 Stainless Steel Din 912 €0.22
6 - M5 Washer Galvanized Din 125A M5 Washer Galvanized Din 125A €0.04
7 - Woodruff / Flywheel key Tomos 3X5 Woodruff / Flywheel key See extra image Tomos all models. Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A3 Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro €1.25
8 - Clutch / Flywheel nut Tomos Clutch / Flywheel nut See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro €0.50
10 - Coil / CDI Tomos A35 Coil / CDI Unit Tomos A35 For model with electronic ignition Note: Mounting holes are slightly further inwards compared to the original CDI. €19.95
12 - High Tension sparkplug cable - 7MM 50cm High tension sparkplug cable 7mm in thickness ± 50cm in length Is used for external coils €0.90
13 - Sparkplug cap NGK LB05F Spark plug cap NGK Black Type LB05F 5K Ohm resistor Usable for; Zundapp Kreidler Puch Yamaha Gilera Citta / SI Vespa Ciao Tomos €4.50
15 - Cylinder screw Galvanized M5X12 Din 7985H Cylinder screw Galvanized. M5X12. Din 7985H €0.15
