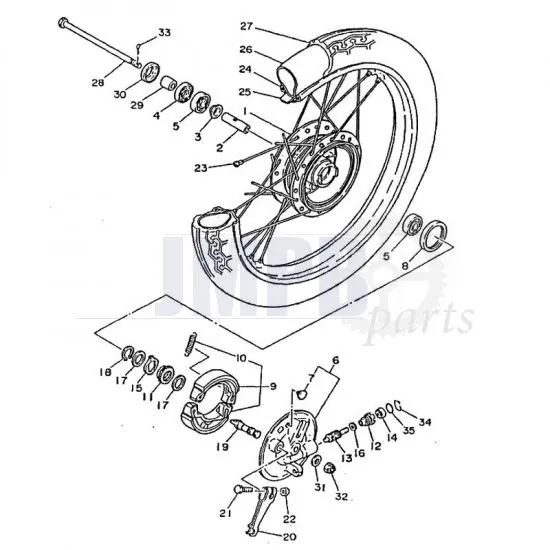

Front wheel Yamaha FS1 2RU | Exploded view drawing

FAQ about this product

No Questions

Do you have a question?

Leave your question below and one of our experts will take care of you as soon as possible.

Product Name	Qty
2 - Spacer sleeve Front wheel Yamaha FS1 Drum brake Spacer sleeve Front wheel Yamaha FS1 Models with drum brake €9.50
3 - Ring for Front wheel bushing Yamaha FS1/DT50M Ring for front wheel bushing Yamaha FS1 Yamaha DT50M €2.50
4 - Seal Front Wheel Yamaha FS1 Right Seal Front Wheel Leftside Yamaha FS1 Size; 20X35X7 €4.99
5 - Bearing 6300 2RS SKF Bearing SKF 6300 2RS Double dust sealing Inner diameter 10MM Outer diameter 35MM Width 11MM €7.95
7 - Rubber cap in brake disc FS1 Rubber cap in brake disc FS1 Yamaha FS1. Works on front and rear brakes Original Yamaha €3.75
8 - Seal Front wheel Yamaha FS1/DT Left Seal Front wheel Left Yamaha FS1 Yamaha DT50 Yamaha DT50M €12.50
9 - Brake Shoes FS1/DT/RD/TY With Springs Set Brake shoes, front or rear. Fits on; Yamaha FS1 Yamaha DT Yamaha RD Yamaha TY Including springs. €6.95
9 - Brake Shoes Yamaha FS1 Original Brake Shoes Origineel For front & rear usable Fitting for; Yamaha FS1 Yamaha DT Yamaha RD Yamaha TY €19.95
10 - Spring brake shoe LONG Yamaha FS1 Spring brake shoe Yamaha FS1 A piece, Long model length 58 MM Original Yamaha. €3.99
11 - Speedometer driver Set Yamaha FS1 Speedometer driver set Contains, Sprocket, speedometer worm & locknut Yamaha FS1 €19.95
11 - Speedometer Driver set Yamaha FS1 3-Pieces Speedometer driver kit 3-Pieces Yamaha FS1 €14.95
12 - Bushing for speedometer Worm Yamaha FS1/DT Bushing For Speedometer Worm Yamaha FS1 Yamaha DT See extra image ( Nr 10 ) €4.95
13 - Speedometer axle Yamaha FS1 Speedometer axle Yamaha FS1 €29.50
14 - Seal Speedometer Worm Yamaha FS1/DT Seal Speedometer Worm Yamaha FS1 Yamaha DT50M Yamaha DT50MX €2.15
15 - Driver plate Speedometer Yamaha FS1/DT Driver plate for Speedometer Yamaha FS1 Yamaha DT50 Yamaha DT50M €3.99
16 - Ring for Speedometer axle Yamaha FS1/DT Ring for Speedometer axle Yamaha FS1 Yamaha DT50M €2.50
17 - Filler Speedometer driver Yamaha FS1/DT Filler ring Speedometer driver A piece Yamaha FS Yamaha DT50M Yamaha DT50E €2.45
18 - Circlip mounting Speedometer Worm Yamaha FS1/DT Remake Circlip mounting Speedometer Worm A Piece Remake Yamaha FS1 Yamaha DT50M Yamaha DT50E €0.35
18 - Circlip mounting Speedometer worm Yamaha FS1/DT Original Circlip mounting Speedometer worm Original Yamaha FS1 Yamaha DT50M Yamaha DT50E €3.99
19 - Brake key Yamaha 14MM FS1/DT Brake key 14MM ( Note, this can vary per type Yamaha ) Yamaha FS1 2RU Front & Rear Yamaha DT50M Front & Rear Yamaha DT50E Front & Rear Yamaha DT50MX Front & Rear €33.95
21 - Bolt Brake lever Yamaha FS1/DT Original Bolt brake lever Original Yamaha FS1 Yamaha DT €1.25
22 - M6 Nut SS Din 934 M6 Nut Stainless Steel. Din 934 €0.08
22 - Nut Yamaha M6 SS - Original Nut M6 Original Yamaha Stainless Steel To use for; Bolt brake lever Yamaha FS1 Cylinder head Yamaha FS1 Speedometer Yamaha FS1 Taillight Yamaha FS1 €2.75
23 - Spokes set front wheel Yamaha FS1 Original Spoke set Original Front wheel, Drum brake model Yamaha FS1 Length 156MM Set of 36 pieces Including nipples €59.95
24 - Rim B-Choice Chrome 1.20 X 17 Rim Chromed B-choice, Chrome is not too thick, so there are sanding traces Size; 1.20X17 A: 45MM B: 31MM C: 17MM Diameter spoke hole: 6.4MM 36 Holes €23.95
24 - Front rim Yamaha FS1 17 X 1.20 Original Front Rim Chromed Yamaha FS1 Union Rim size: 1.20X17 A: 46MM B: 31MM C: 18MM Diameter spoke hole: 5.8MM 36 Holes €79.95
24 - Rim Front D.I.D. Yamaha 1.20X17 Rim Frontside D.I.D. Yamaha FS1 1.20 X 17 A: 45MM B: 31MM C: 17MM Diameter spoke hole: 5.5MM 36 Holes €95.00
24 - Front Wheel Spoked Yamaha FS1 1.20X17 Frontwheel Spoked Chromed Sizes: 1.20 X 17 A: 45MM B: 31MM C: 20MM Fitting for: Yamaha FS1 €229.00
25 - Rim tape 16/17 Inch Rim tape To be used for; 16 Inch rims 17 Inch rims €1.90

26 - Inner Tube 2.25 / 2.50 X 17 Michelin Inner Tube Size: 2.25 / 2.50 X 17 Straight valve Michelin Airstop €15.95
26 - Inner Tube 2.00/2.25/2.50 X 16/17 Inner Tube Fits in the following tire sizes: 2.00 X 16 2.25 X 16 2.50 X 16 2.00 X 17 2.25 X 17 2.50 X 17 €6.90
27 - 17 Inch Deestone Street D747 2.50X17 Tire Street profile Brand; Deestone Type D747 Size; 2.50 X 17 Load index 38 (132KG / 291LBS) Speed index L (120KM / 75MPH) Tube Type (For use with inner tube) €22.50
27 - 17 Inch Deestone Lined D85 2.50X17 Tire Line profile Brand; Deestone Type D85 Size; 2.50 X 17 Load index 38 (132KG / 291LBS) Speed index L (120KM / 75MPH) Tube Type (For use with inner tube) Is often used as front tire of a Yamaha FS1 €23.95
30 - Dust cover Front wheel Right Yamaha FS1 Dust cover Front wheel Right Yamaha FS1 €8.95
31 - M10 Flat washer SS Din 433 M10 Flat washer. Stainless Steel Din 433 €0.25
31 - Ring M10 SS Yamaha Original Ring Stainless Steel M10 Original Yamaha. Is used for; Handlebar bracket Yamaha FS1 Ring front wheel axle Yamaha FS1 Shock absorber Yamaha DT50M/E Ring Swingarm Yamaha DT50M €1.99
33 - Split pin Front & Rear axle Yamaha FS1 Original Split pen To use for the Front & Rear axle Yamaha FS1 €2.40
33 - Split pin Front & Rear axle Yamaha FS1 Remake Split pin To use for the front & rear axle Yamaha FS1 Remake €0.30
34 - Clip speedometer cable Yamaha FS1/DT Clip For mounting the speedometer cable Yamaha FS1 Yamaha DT50MX €0.85
34 - Clip speedometer cable Yamaha FS1/DT Original Clip For mounting the speedometer cable Yamaha FS1 Yamaha DT50MX Original €3.50
