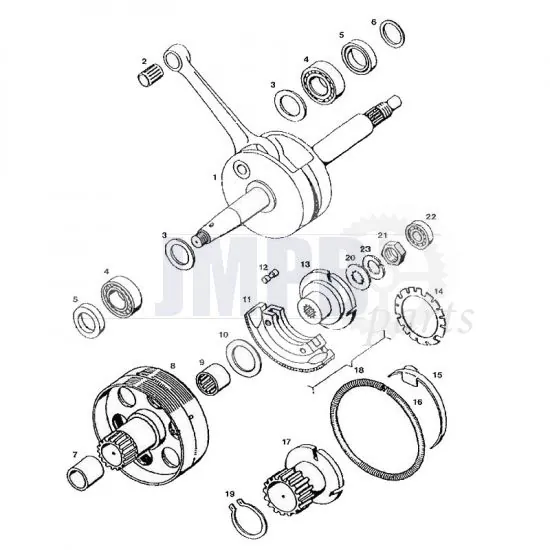

Exploded drawing Clutch / Crankshaft Tomos Standard

Grouped product items
Product Name	Qty
1 - Crankshaft A35 Top Racing - Standard Crankshaft Tomos A35 Top Racing Standard €119.00
1 - Crankshaft Tomos A35 Import Crankshaft Import Model with solid bronze bus ( 12MM ) Tomos A35 €49.00
1 - Crankshaft A35 DMP - Standard Crankshaft standard Tomos A35 €69.95
2 - Needle bearing Tomos A3/A35 Needle bearing Tomos A3/A35 12MM €4.95
3 - Shimring Crankshaft 0.20MM Tomos Shimring Crankshaft 0.20MM See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro €1.99
4 - Bearing 6203 C3 SKF Bearing SKF 6203 C3 Inner diameter 17MM Outer diameter 40MM Width 12MM Usable for: Puch Maxi, Left side Crankshaft Puch Maxi, Sprocket axle Yamaha FS1 Gears Zundapp 3/4/5 Gears, Crankshaft Left Zundapp 3 Gears, Front sprocket Tomos A3/A35, Crankshaft Left/Right Honda MT/MB, Balance axle Right €4.90
5 - Crankshaft seal Tomos Double 17X35X7 Crankshaft seal 17 X 35 X 7 ( Double sealed ) Tomos al modelsn Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro €3.25
6 - Filler Ring Crankshaft/Clutch Tomos Filler ring 2MM Crankshaft/ bottom clutch house Tomos See extra image €2.50
7 - Bearing bushing Clutch Tomos A35 Bearing bushing Clutch Tomos from A35 models See extra image, number 7 €4.95
8 - Clutch housing Tomos A35 Clutch housing Tomos Standard Tomos Flexer Tomos Quadro Tomos Youngst'r Tomos Classic Tomos Luxe Tomos Revival Tomos Funsport Tomos Streetmate €149.00
9 - Needle bearing Clutch Tomos Needle bearing Clutch Tomos See extra image number 9 €12.95
10 - Shimring Clutch Tomos 0.50MM Shimring / Filler Clutch See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro €1.75
10 - Shimring Clutch Tomos 0.30MM Shimring / Filling ring Clutch 0.30 MM See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro €1.75
11 - Clutch Shoes Tomos A35 3-Pieces Clutch shoes set 3-Pieces Can be used for 1st or 2nd gear Tomos A35 €17.50
12 - Pen Clutch shoes Tomos Pen Clutch shoes See extra image nr. 12 Tomos €2.19
14 - Pressure spring Clutch Tomos Pressure spring Clutch Tomos See extra image nr 14 €4.95
15 - Clamping spring Clutch Tomos Clamping spring Clutch See extra Image nr. 15 Tomos €4.75	Out of stock
16 - Clutch spring Tomos 1st Gear Clutch spring 1st Gear Tomos Classic Tomos Standard Tomos Flexer Tomos Quadro Tomos A3 Tomos A35 Tomos Luxe Tomos Funtastic Tomos Taxxity Tomos Revival Tomos Youngst'R Tomos Sprint Tomos Streetmate €2.50
16 - Clutch spring Tomos 2nd Gear Clutch spring 2nd Gear Tomos Classic Tomos Standard Tomos Flexer Tomos Quadro Tomos A3 Tomos A35 Tomos Luxe Tomos Funtastic Tomos Taxxity Tomos Revival Tomos Youngst'R Tomos Sprint Tomos Streetmate €2.50
18 - Clutch set Tomos A35 2nd gear Original Clutch set Tomos A35 2de gear Original €124.95
19 - Circlip Clutch Tomos 28MM Circlip Clutch Tomos 28MM See extra image number 19 €0.85
20 - Lock washer Tomos Clutch Lock washer Tomos Clutch Tomos Various models See extra image €0.60
21 - Clutch / Flywheel nut Tomos Clutch / Flywheel nut See extra image For the following models; Tomos Classic Tomos Fun Sport Tomos Flexer Tomos Standard Tomos A35 Tomos Pack'R Tomos Streetmate Tomos Youngst'R Tomos Quadro €0.50
22 - Bearing 608 SKF Bearing SKF Size 608 Inner diameter 8MM Outer diameter 22MM Width 7MM Is used for; Tomos A3/A35 Carter lid €5.90
