Front fork Tomos Flexer until 2006

Grouped product items
Product Name Qty
11 - Hex bolt M8X20 Galvanized Din 933
Hex bolt M8X20 Galvanized Din 933

Hex bolt M8 X 20
Galvanized
Full thread
Din 933

€0.15
12 - M8 Spring washer Flat Galvanized Din 127
M8 Spring washer Flat Galvanized Din 127

M8 Spring washer Flat
Galvanized
Din 127

€0.06
13 - M8 Washer Galvanized Din 125A
M8 Washer Galvanized Din 125A

M8 Washer
Galvanized
Din 125A

€0.05
14 - Rubber stop in front fork Tomos
Rubber stop in front fork Tomos
  • Rubber stop in the front fork
  • Old models front forks
  • Tomos Luxe
  • Tomos Quadro
  • Tomos S25
  • Tomos A3
  • Tomos A35
€2.50
16 - Tie-Rib Fork cover Tomos a Piece
Tie-Rib Fork cover Tomos a Piece
  • Tie-Rib for mounting the Fork cover topside
  • Tomos models with old model front fork
  • A Piece
  • Tomos Standard
  • Tomos A35
  • Tomos Flexer
  • Tomos Quadro
€0.15
20 - Bolt Fork plate Tomos A35/Flexer/Quadro
Bolt Fork plate Tomos A35/Flexer/Quadro
  • Bolt in fork plate
  • A piece
  • Old models front fork until 2006
  • Tomos Standard
  • Tomos Taxxity
  • Tomos A3
  • Tomos A35
  • Tomos S25
  • Tomos Luxe
  • Tomos Quadro
  • Tomos Flexer
€4.25
22 - Headlight Hook Left Silver Tomos Old Model
Headlight Hook Left Silver Tomos Old Model
  • Headlight Hook
  • For models with old model front fork
  • Tomos Standard
  • Tomos A35
  • Tomos Quadro
  • Tomos Flexer
€10.95
23 - Headlight Hook Right Silver Tomos Old Model
Headlight Hook Right Silver Tomos Old Model
  • Headlight Hook
  • For models with old model front fork
  • Right
  • Tomos Standard
  • Tomos A35
  • Tomos Quadro
  • Tomos Flexer

  • See images for sizes

€10.95
27 - Steering head ring Vertical Tomos
Steering head ring Vertical Tomos
  • Steering head ring vertical
  • Is used at various models between the lower steering head cone
  • Tomos Revival
  • Tomos Pack'R
  • Tomos Streetmate
  • Tomos Flexer
€1.20
32 - Ring below Adjustment Nut Steering Head Tomos
Ring below Adjustment Nut Steering Head Tomos
  • Ring below steering head adjustment nut

    For:
  • Tomos Classic
  • Tomos Fun Sport
  • Tomos Youngst'R
  • Tomos Flexer
  • Tomos Luxe
  • Tomos Revival
  • Tomos Quadro
  • Tomos Standard

  • See images for sizes

€2.95
33 - Steering head ball A Piece Tomos
Steering head ball A Piece Tomos
  • Steering head ball
  • Tomos
  • A Piece
  • 5MM
€0.20
34 - Steering head cup Topside Tomos
Steering head cup Topside Tomos
  • Steering head cup Topside
    For;
  • Tomos Classic
  • Tomos Fun Sport
  • Tomos Youngst'R
  • Tomos Flexer
  • Tomos Luxe
  • Tomos Revival
  • Tomos Quadro
  • Tomos Standard
€8.95
37 - Steering head set Complete Tomos A3/A35
Steering head set Complete Tomos A3/A35
  • Steering head set complete
  • Tomos A3
  • Tomos A35
  • Tomos Classic till 2006
  • Tomos Flexer till 2006
  • Tomos Standard till 2006
  • Tomos Quadro till 2006

Sizes;

  • Steering head cup in frame 33MM outer diameter
  • Lower cone on front fork 26MM inner diameter
  • Thread M26X1
€13.95
In stock, immediately available.
In stock
SKU
--EXP-TO-FLO-012

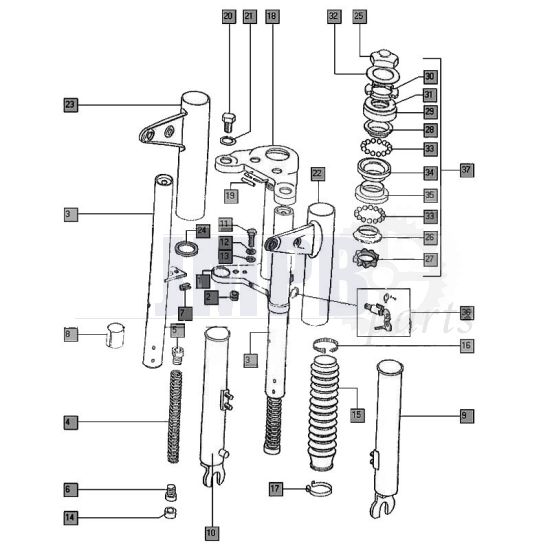

  • Find here all parts on drawing
  • Front fork
  • Tomos Flexer until 2006
  • Find here all parts on drawing
  • Front fork
  • Tomos Flexer until 2006
