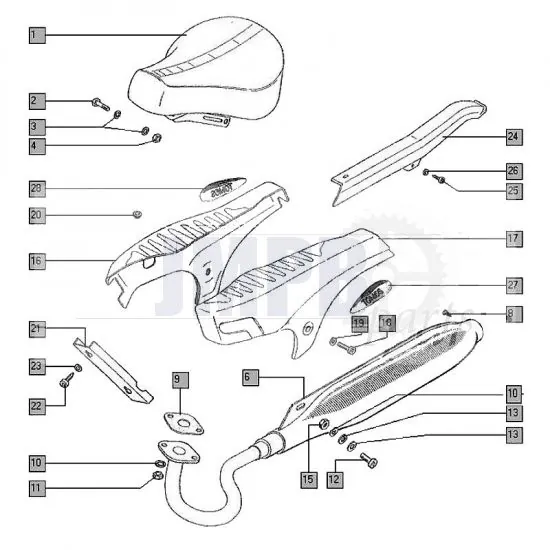

Seat / Side panels / Exhaust Tomos Flexer untill 2006

Hex bolt M8X55
Verzinkt
Full thread
Din 931

M8 Washer
Galvanized
Din 125A

M8 Locknut
Galvanized
Din 985

• Exhaust standard model
• Tomos A35
• 22MM



• Additional Warranty Information, see Downloads



• Exhaust Standard model
• Model Speedy
• Chromed
• 26MM
• Tomos A3


• Additional Warranty Information, see Downloads



• Exhaust Standard model
• Chromed
• 22MM
• Tomos A35


• Additional Warranty Information, see Downloads



Plate Screw Galvanized.
3.9 X 9.5.
Din 7981

• Exhaust gasket
• Standard
• Tomos

• Exhaust gasket
• Big
• Tomos

M6 Spring washer Flat
Galvanized
Din 127

• Exhaust nut
• Brass
• M6 ( tall model )
• A Piece

  Usable for:
• Puch
• Tomos
• Kreidler

• Extentend nut
• M6 / 3D
• Galvanized
• Ideal to use for exhaust studs or as cylinder head nut
• 6MM
• A piece

Hex bolt M6 X 16
Galvanized
Full thread
Din 933

M6 Washer
Galvanized
Din 125A

• Nut M6
• Galvanized
• Din 934

• Flange bolt M6X16
• A Piece
• Fits on;
• Side panel Tomos Standard
• Rear carrier Tomos

• Flat washer
• For Tomos Side panels
• M6 ( Outer diameter 18MM )
• Galvanized

• Rubber Side cover
• Tomos
• Can be used as grommet for the oil sensor cable


• See extra images


• Plate Screw
• Galvanized
• Size: 4.2 X 19
• Din 7981

M4 Washer.
Galvanized.
Din 125A

• Chainguard
• Black
• Tomos A35

Plate Screw Hexagonal.
Galvanized.
Size; 4.8X13
Din 7976C

• Flat washer
• Tomos Chainguard
• M5 Outer diameter 15MM
