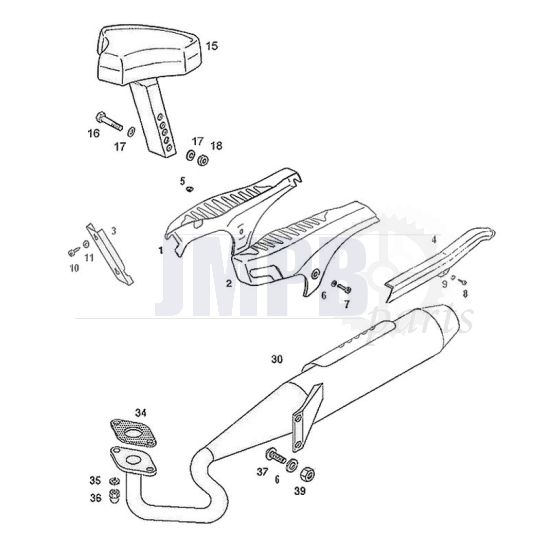

Exploded drawing seat / frame Tomos Standard

Grouped product items
Product Name	Qty
1 - Side panel set Tomos A35 Unpainted Set side panels Unpainted Left & Right Tomos A35 €30.95
1 - Side panel set Tomos A35 Chromed Set side panels Chromed Left & Right Tomos A35 €39.95
1 - Side panel set Tomos A35 Black Painted Set side panels Black Painted Left & Right Tomos A35 €36.50
1 - Side panel set Tomos A35 Matt Black Set side panels Matt black Left & Right Tomos A35 €37.95
4 - Chainguard Tomos A35 Black Chainguard Black Tomos A35 €11.95
5 - Rubber Side cover / Grommet cable Oil Sensor Tomos Rubber Side cover Tomos Can be used as grommet for the oil sensor cable See extra images €2.29
6 - Flat washer Tomos M6 Flat washer For Tomos Side panels M6 ( Outer diameter 18MM ) Galvanized €0.40
7 - Flange bolt Tomos M6X16 Flange bolt M6X16 A Piece Fits on; Side panel Tomos Standard Rear carrier Tomos €0.40
8 - Plate Screw Galvanized 4.8X13 Din 6928C Plate screw Galvanized 4.8X13 Din 6928C €0.15
8 - Plate Screw Galvanized 4.8X13 Din 79676C Plate Screw Hexagonal. Galvanized. Size; 4.8X13 Din 7976C €0.40
9 - Flat washer Tomos M5 Flat washer Tomos Chainguard M5 Outer diameter 15MM €0.20
10 - Plate Screw Galvanized 4.2 X 19 Din 7981 Plate Screw Galvanized Size: 4.2 X 19 Din 7981 €0.15
11 - M4 Washer Galvanized Din 125A M4 Washer. Galvanized. Din 125A €0.05
15 - Seat Tomos A3/A35 Black with Text Seat Black Model with Text "Tomos" Tomos A3/A35 €34.95
16 - Hex bolt M8X55 Galvanized Din 931 Hex bolt M8X55 Verzinkt Full thread Din 931 €0.35
17 - M8 Washer Galvanized Din 125A M8 Washer Galvanized Din 125A €0.05
18 - M8 Locknut Galvanized Din 985 M8 Locknut Galvanized Din 985 €0.15
30 - Exhaust Tomos A35 / Flexer Speedy 26MM Chrome Exhaust Standard model Model Speedy Chromed 26MM Tomos A35 / Flexer Additional Warranty Information, see Downloads €49.95
30 - Exhaust Tomos A35 / 22MM Chrome Exhaust Standard model Chromed 22MM Tomos A35 Additional Warranty Information, see Downloads €45.00
34 - Exhaust gasket Tomos Standard Exhaust gasket Standard Tomos €0.75
34 - Exhaust gasket Tomos Big Exhaust gasket Big Tomos €1.30
35 - M6 Spring washer Flat Galvanized Din 127 M6 Spring washer Flat Galvanized Din 127 €0.02
36 - M6 Nut Galvanized extended 3D Extentend nut M6 / 3D Galvanized Ideal to use for exhaust studs or as cylinder head nut 6MM A piece €0.40
36 - Exhaust nut brass M6 Tall Model Exhaust nut Brass M6 ( tall model ) A Piece Usable for: Puch Tomos Kreidler €0.99
37 - Flange bolt Galvanized Toothed M6X20 Din 6921 Flange bolt Toothed Galvanized M6X20 Din 6921 €0.40
39 - M6 Locknut Galvanized Din 985 M6 Locknut Galvanized Din 985 €0.05
